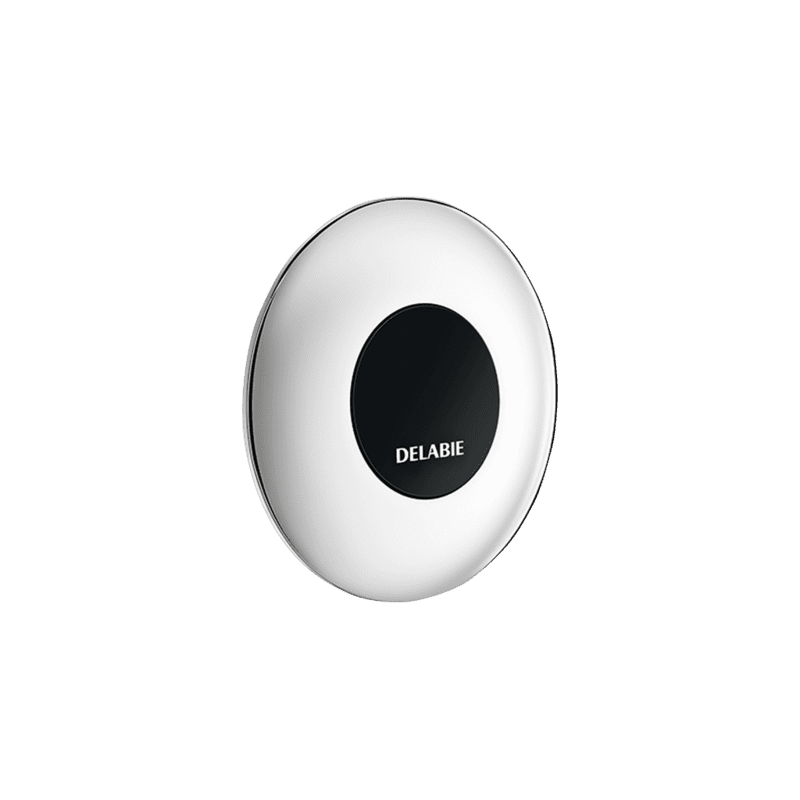

Delabie 428150

TEMPOMATIC electronic valve for cross wall individual urinal:
Mains supply, electronic control unit 12V with solenoid valve, filter and stopcock M1/2″.

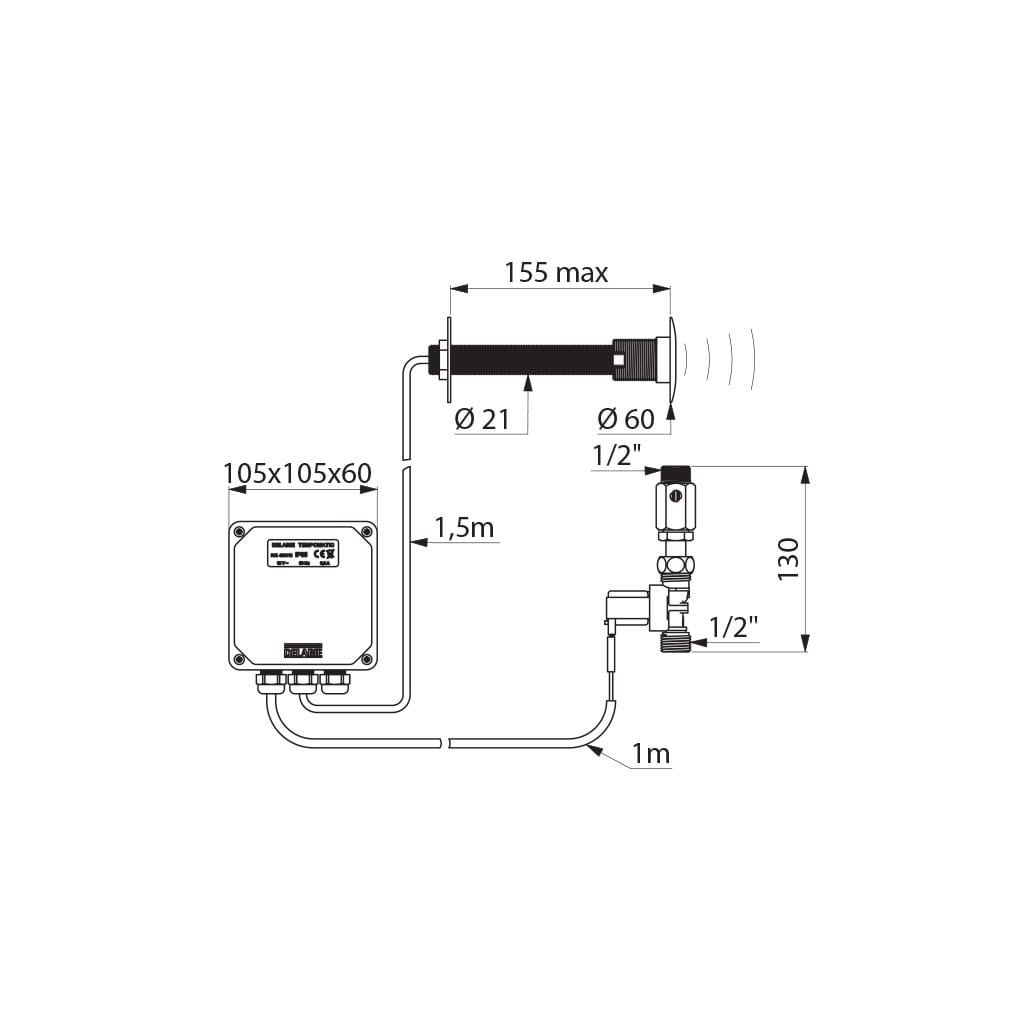

Cross wall installation for walls ≤ 155mm.
Shockproof infrared presence detector.
Detection distance, time flow and flow rate can be adjusted at installation.
Order separately the 230/12V transformer (see opposite page).
Presence detection delay is 3 sec.
Automatic pre-rinse possible.
Time flow 3 sec. can be adjusted from 3 to 12 sec.
Hygienic duty flush is possible every 24hours after last use, prevents vacuums in the siphon.
Flow rate 0.3 l/sec. at 3 bar pressure, can be adjusted.
Wall plate flush to the wall.
Threaded rods can be cut-to-size.
