Project Description

TEMPOFIX 3 wall-mounted frame system for WCs

For Walls 20 – 40 mm Ref. 578300-578222

For Walls 45 – 65 mm Ref. 578400-578222

For Walls 80 -130 mm Ref. 578300-578230

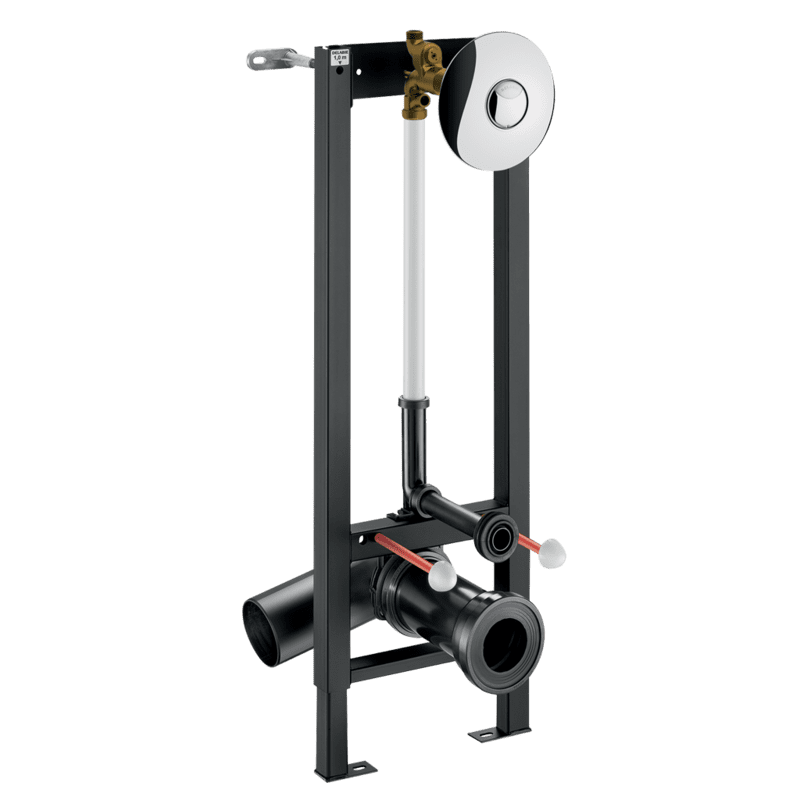

Wall-mounted frame system W. 350mm for wall-hung WC:
Black epoxy coated steel frame.
Fixes to load-bearing floors.
Frame height can be adjusted from 0 to 200mm (with 1m mark).
Ø 32mm flush tube with Ø 55mm connection washer.
Ø 100mm soil pipe with waterproof seal, with 2 settings positions.
Supplied pre-mounted.
Conforms to standard NF D12-208.
For thick walls 80 – 130mm.

Fitted with TEMPOFLUX 2 direct flush time flow valve:
Ø 195mm chrome-plated wall plate with concealed fixings.
3L/6L dual flush (can be adjusted to 2L/4L).
Soft-touch operation.
Vacuum breaker.
Stopcock and flow rate/volume adjuster.
Solid brass body and shockproof, scale-resistant mechanism.
In-line inlet M3/4″.
Acoustic level conforms to European standard EN class II.
Technical features: see TEMPOFLUX 2 ref. 762902.

10-year warranty.
