Delabie 794BOX3

TEMPOMIX 3 recessed time flow basin mixer:

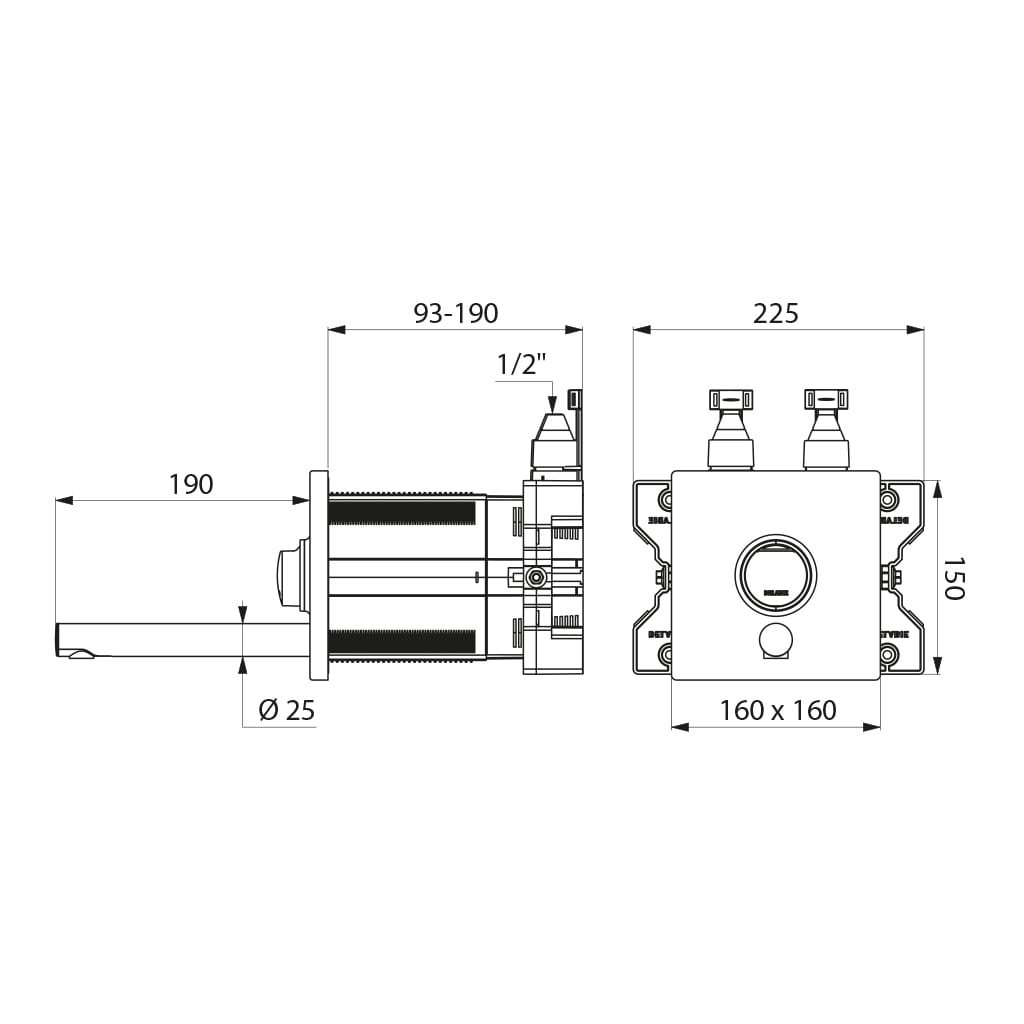

Tamperproof chrome-plated metal plate 160 x 160mm.

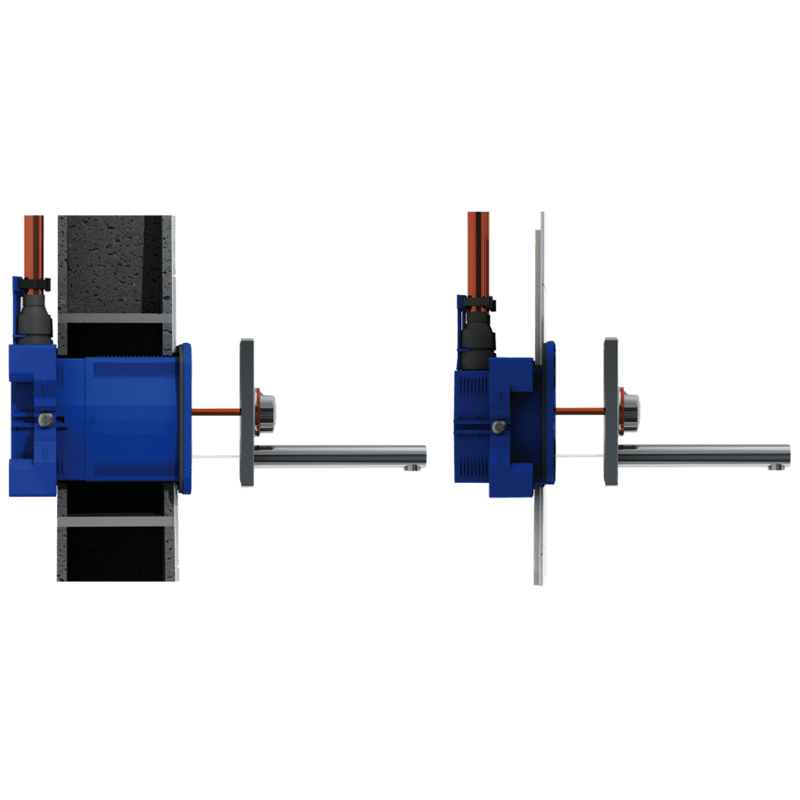

Waterproof recessing housing:
– Collar with waterproof seal.
– Hydraulic connection from the outside and maintenance from the front.
– Adjusts to all types of installations (rails, load-bearing walls, panels).
– Compatible with wall finishes 13 – 120mm.
– Suitable for standard or “pipe in pipe” supply.
– Stopcock and flow rate adjustment, filters, non-return valves and cartridge are integrated and accessible from the front.
– TEMPOMIX 3 single control mixer F½”.
– Supplied in 2 kits: secure system flush without sensitive elements.
Operation and temperature control via the push-button.
Maximum temperature limiter (can be adjusted by installer).
Time flow ~7 sec, can be adjusted.
Soft-touch operation.
Flow rate pre-set at 3 lpm at 3 bar pressure, can be adjusted 1.5 – 6 lpm.
Scale-resistant flow straightener.
Spout L. 190mm with smooth interior and low water volume (limits bacterial niches).
10-year warranty.
