Project Description

TEMPOFLUX 3
Ref. 763BOX-763000

TEMPOFLUX 3 waterproof recessed direct flush time flow valve:

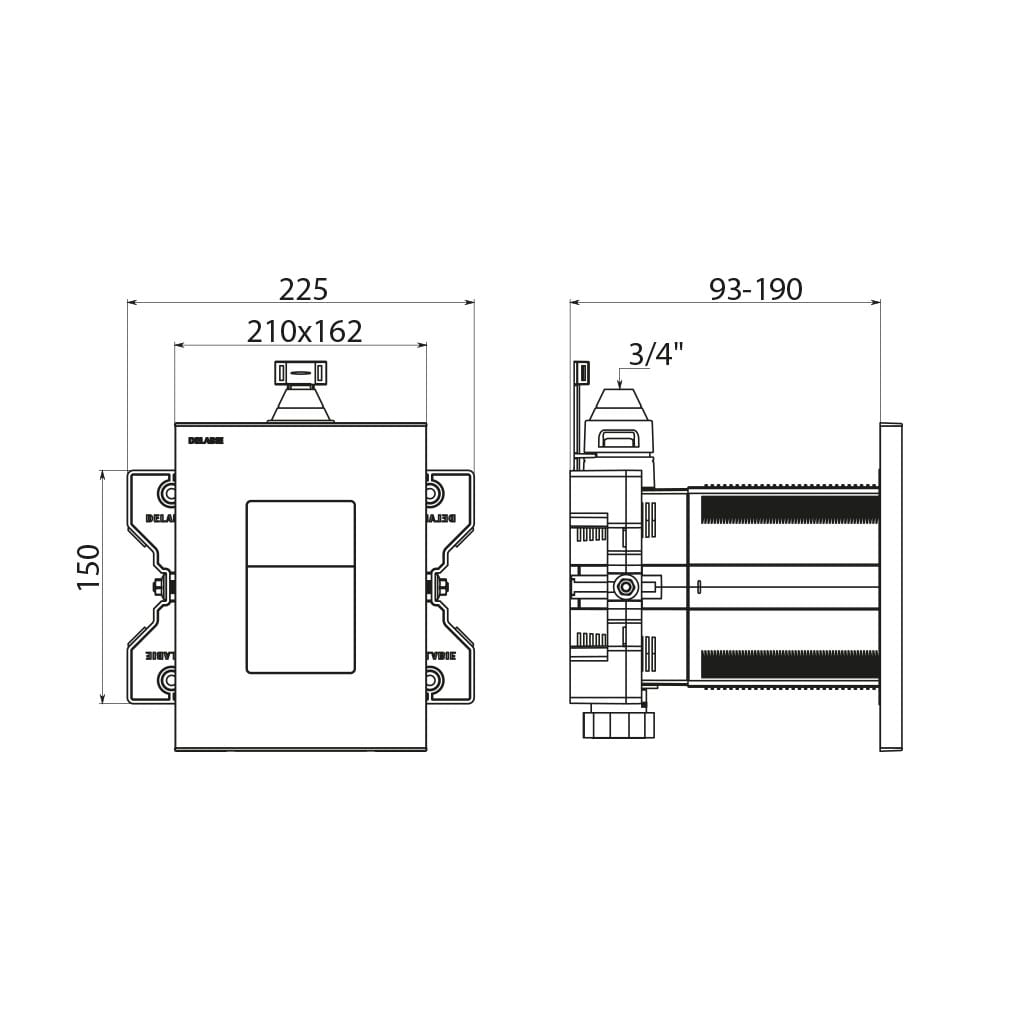

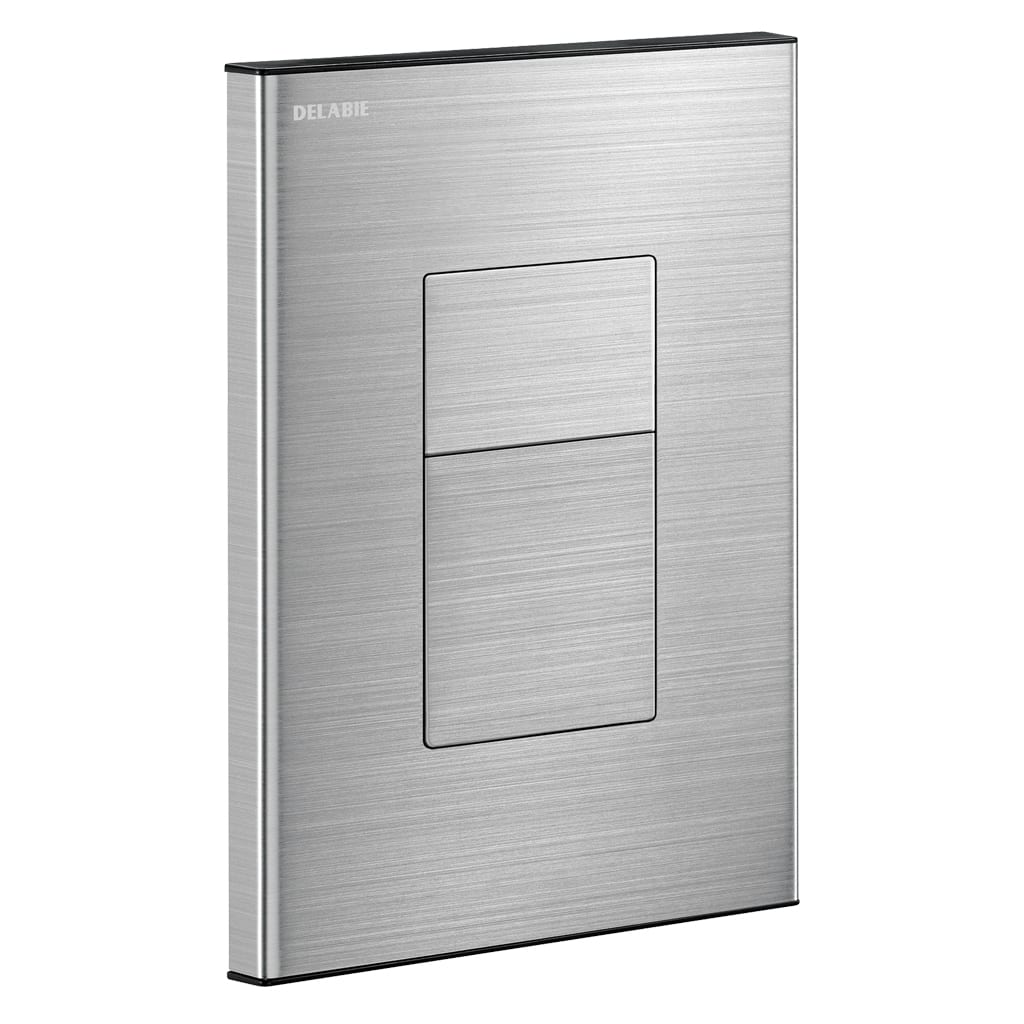

Satin finish stainless steel wall plate 210 x 162mm.
Waterproof recessing housing:
– Collar with integrated seal.
– Hydraulic connection from the exterior and maintenance from the front.
– Multiple installation options (rails, solid walls, panels).
– Compatible with wall finishes from 10 – 120mm (while respecting the minimum recessing depth of 93mm).
– Supply can be standard or “pipe-in-pipe”.
– Stopcock and flow rate adjustment, starter button, filter and cartridge all integrated and can be accessed from the front.
– TEMPOFLUX 3 F3/4″ flush valve is compatible with sea water and grey water.
– Back flow prevention inside the housing.
– Supplied in 2 kits: system can be flushed safely without the sensitive elements.
Soft-touch operation.
AB Anti-blocking system: rinses only when the push-button is released.
Dual flush 3L/6L can be adjusted to 2L/4L.
Outlet connection for PVC tube Ø 26/32mm.
Acoustic level complies with European standard EN 12541 (class II acoustic level).
Suitable for Rimless WC pans.
10-year warranty.
