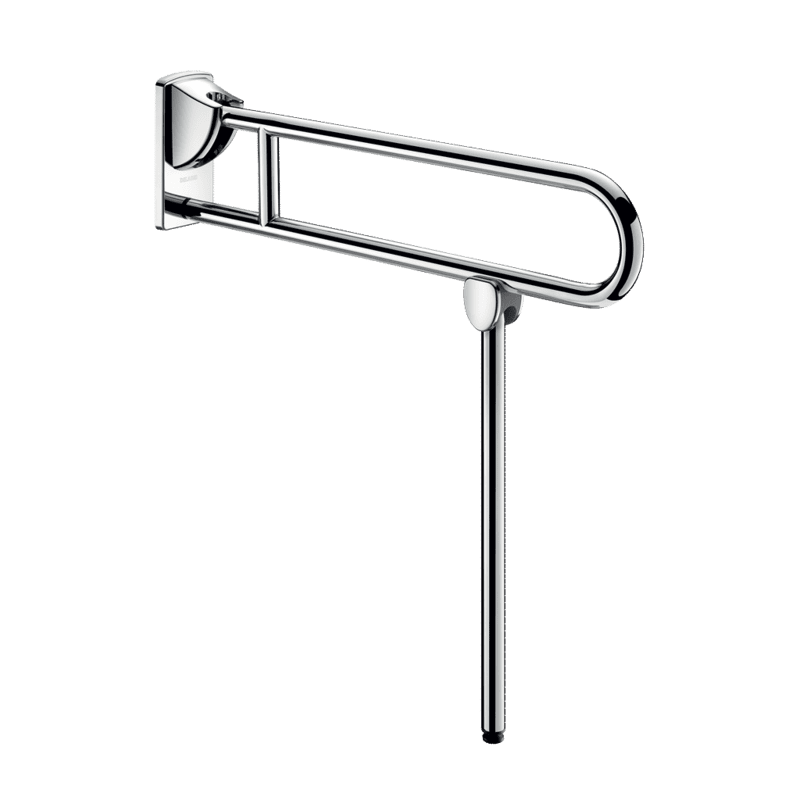

Drop-down grab bar with leg, Ø 32mm, L. 850mm
Ref. 510170S
Drop-down grab bar Ø 32mm with leg, for PRM.
In the lowered position use as a grab bar, for standing up and assisting movement. For WCs or showers. Allows side access in the raised position.
With automatic folding leg. To be used as reinforcement when the wall fixing aloneis insufficient. Leg height can be adjusted from 760 – 780mm.

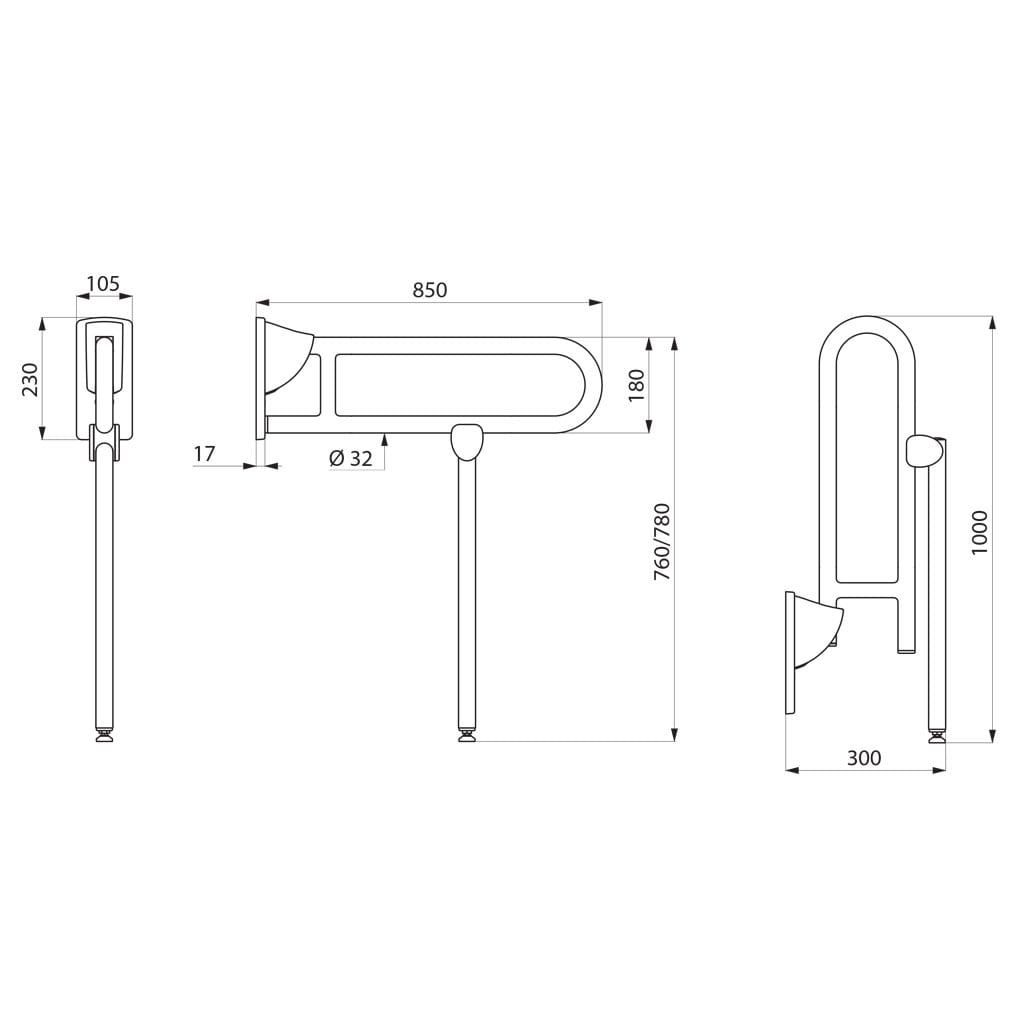

Dimensions: 850 x 800 x 105mm, Ø 32mm. Tube thickness: 1.5mm.
Slowed down descent. Retained in upright position.
Bacteriostatic 304 stainless steel tube.
Stainless steel with UltraSatin polished satin finish, uniform non-porous surface for easy maintenance and hygiene.
Fixings concealed by a 304 stainless steel cover plate, 4mm thick.
Supplied with stainless steel screws for concrete walls.
Tested to over 200kg. Maximum recommended user weight 135kg.
10 year warranty. CE marked.
