Project Description

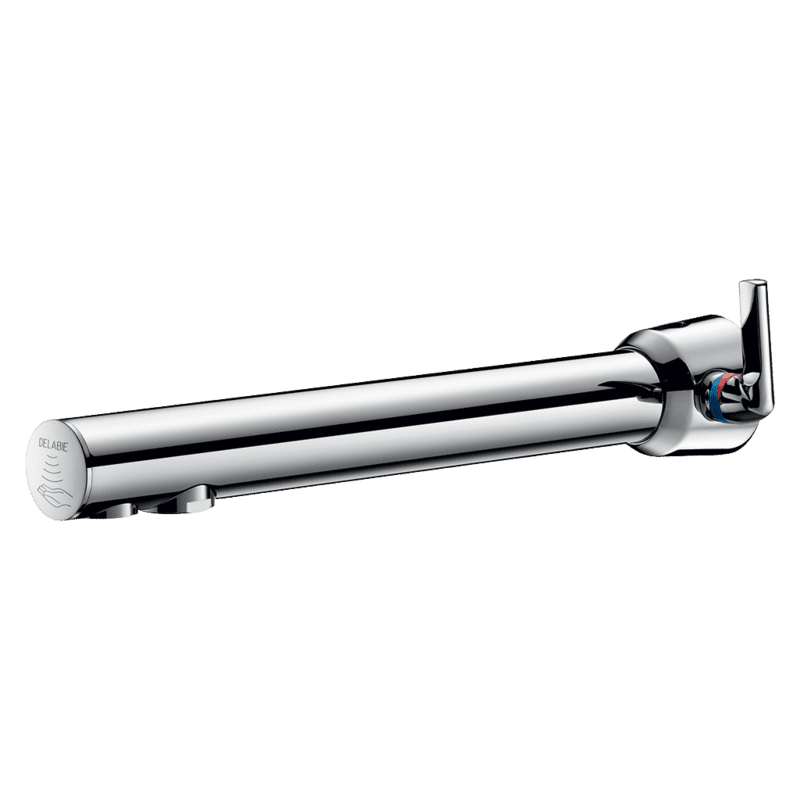

BINOPTIC MIX electronic mixer
Ref. 379MCH
Cross wall electronic basin mixer:
Independent IP65 electronic control unit.
230/12V mains supply with transformer.
Flow rate pre-set at 3 lpm at 3 bar, can be adjusted from 1.5 to 6 lpm.
Scale-resistant flow straightener.
Adjustable duty flush (pre-set flush ~60 sec. every 24hr after last use).
Active, infrared presence detection, sensor at the end of the spout optimises detection.
Filters and solenoid valves M3/8″.
Chrome-plated brass body.

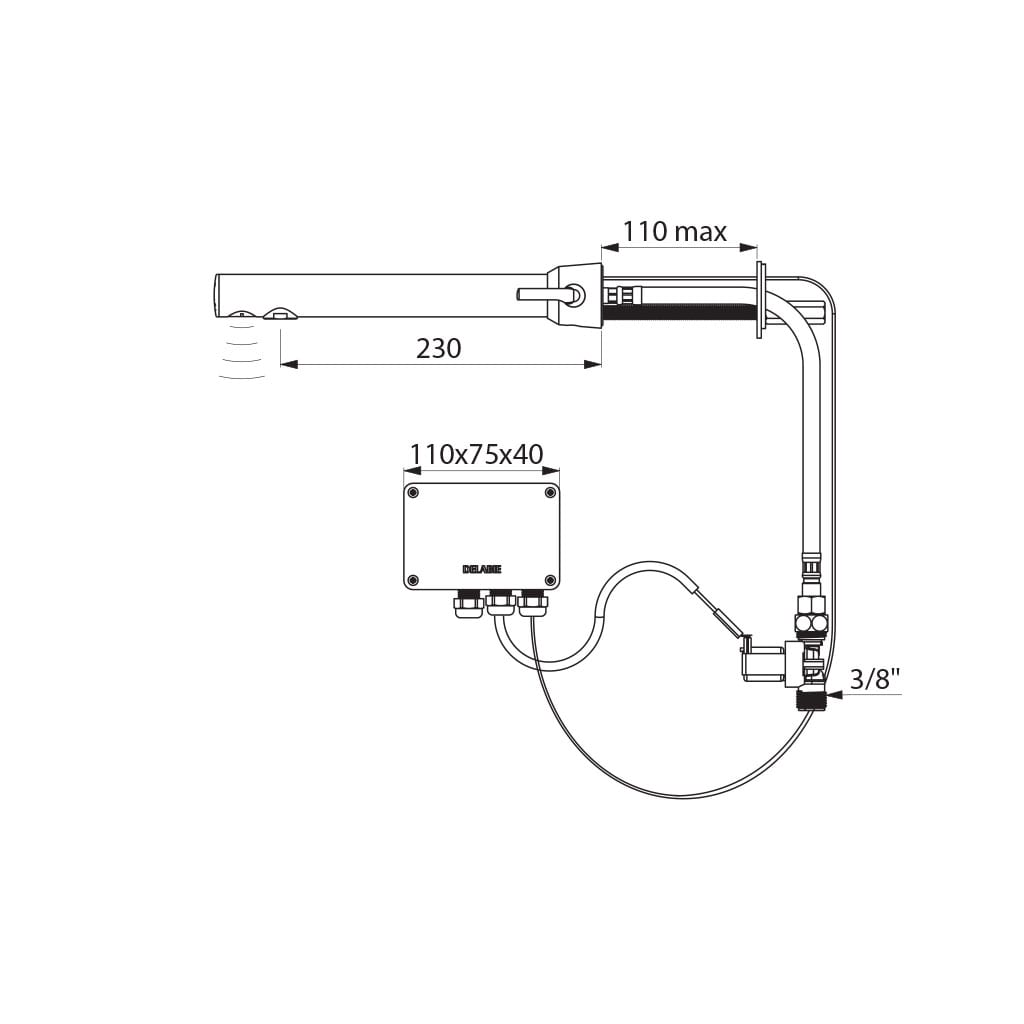

Chrome-plated spout for cross wall installation ≤110mm
Cable for sensor, flexibles and mounting all pass through the same hole.
Anti-blocking safety.
Spout with smooth interior and low volume of water (limits bacterial niches).
Side temperature control with standard lever and adjustable maximum temperature limiter.
10-year warranty.
